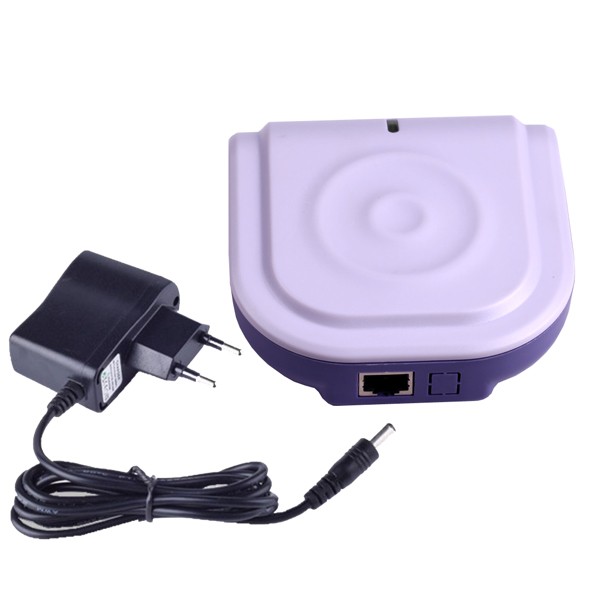

RDM530 Desktop Wifi RFID reader

RDM530-Q-A is a HF reader that conforms to the ISO14443-A protocol.Connect to PC and related devices via TCP/IP or WIFI wireless communication.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM530-Q-A


Desktop , Unwaterproof

Frequency

13.56MHz

Standard

ISO/IEC 14443-A

Interface

WIFI+TCP/IP(POE)

Supporting Card

 Mifare S50/S70/UltralightMifare Pro card

PowerSupply

External 9V or POE power supply

Read Distance

0-8cmDepending on label size and antenna technology

Baud Rate

9600-115200bit/s(Configurable, default 9600)

Operating Temperature

-10 ~ 50

Shell Material

ABS

Dimension

150*87*30mm

Weight

0.29kg


Features

· Support for Type A CPU card operation.

· Support WIFI+TCP/IP (POE) communication.

· A buzzer and a two-color LED indicator light.

· The communication interface can be set to WIFI mode or wireless network card mode or wireless routing mode.

· The SOCKET interface can be set to server mode or client mode.

· The RFID function can be set to automatically detect card upload data mode or passive read and write card mode.

· Support upload mode and commands mode at same time



Application:

· Attendance/Membership Management

· Network Security 

· Digital  Signature 

· Software Lock

· Production Process Management

· Computer Security Management

· Customer Bonus Points Scheme

· Electronic Wallet Recharge and Balance Query

· Stored-ValueSocial Security,Ticket Service,Bank, Tax, Commerce, Industry, Telecommunication, Postal
