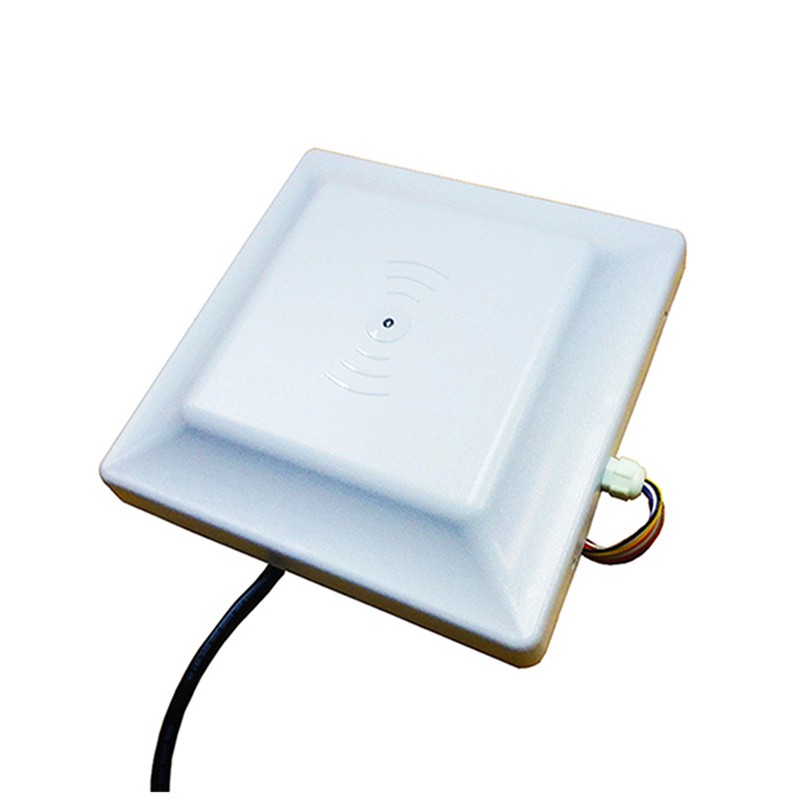

该阅读器兼容协议少，携带方便，读写速度快，可用于各种RFID系统。RDM890X RFID阅读器是一种新型和创新的天线内置集成RFID阅读器，兼容IS018000和EPC类第1代2代RFID标签。它成功地解决了被动射频标签的远程识别、快速运动目标识别和多卡识别等问题。该RFID阅读器的设计包括一个Weigand端口、一个RS485端口和一个RS232输出接口。
Parameter:
RDM890X | |
Frequency | 902～928MHz 或 865~868MHZ |
Standard | ISO18000-6B/ISO18000-6C/EPC Class1G2 |
Read Range | 3~6 meters |
Baud Rate | 9600-115200bit/s(Configurable , default 9600) |
Interface | Wiegand26\34\42,RS485,RS232，TCP/IP,WIFI,GPRS |
Antenna | 8dBi circular polarization |
PowerSupply | DC-7.5-12V,3A（5V POE power supply can be chosen） |
Development Kit | Provide SDK development kit, and C#, C++,Java routines |
Antenna power | 1W (adjustable by software) |
Operating Temperature | -45℃ ~ 65℃ |
Input/output interface | 1 way trigger input or 2 way replay output (customized) |
Ani-thunder | 6000V |
Module No.:
RDM8901 | RDM8902 | RDM8904 | |
Antenna | 8dBi circular polarization | 10dBi circular polarization | 12dBi polarization |
Reading range | 3-6M | 10-12M | 20-25M |
Size | 220*220*40mm | 420*240*30mm | 450*450*50mm |
Weight | 2kg | 3.6kg | 5kg |
Module Description:
RDM890X-A | 865-868Mhz/902-928Mhz, WG26/34,RS232,RS485 |
RDM890X-A-W | 865-868Mhz/902-928Mhz,WIFI |
RDM890X-A-T | 865-868Mhz/902-928Mhz,TCP/IP |
RDM890X-A-G | 865-868Mhz/902-928Mhz,GPRS |
