Overview

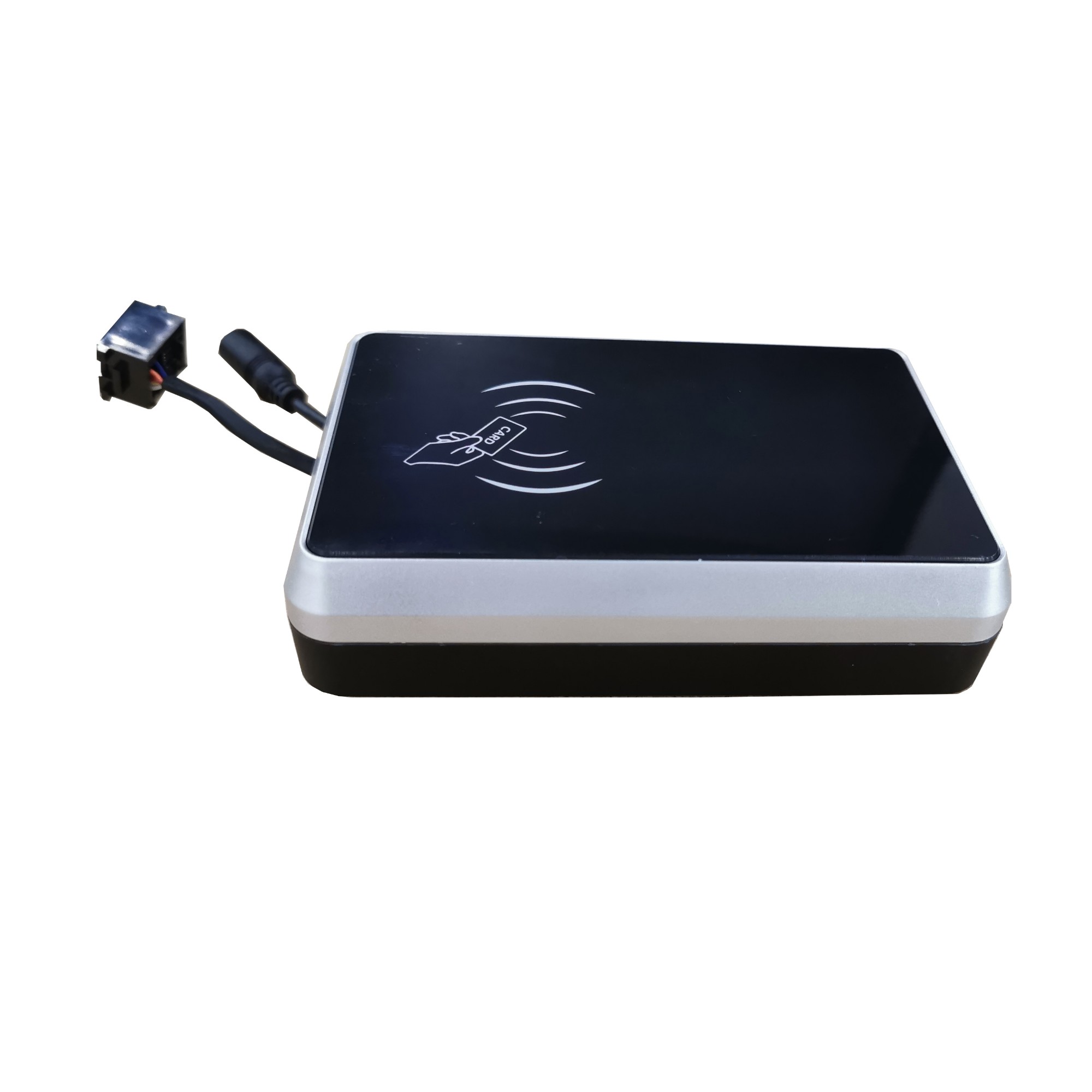

C1 controller  is simple yet stylish look to suit a wide range of installation for both interior and exterior environments. It will looks great outside any office door, flap-barrier gate, turnstile, etc.The reader housing is injection moulded in high-impact resistant ABS plastic and is IP63 rating ideal for outdoor application, with enhance protection at the termination point it can support IP65.

Card/PIN

C1 controller is a Card+PIN reader and come with 16 digit PINpad and a 2.8 inch LCD screen and it display ICON graphic for easy understanding.

C1 controller is build in with 2-SAM receptacles and is ideal use in highly secure installation.

Embedded WebServer

C1 controller build in sql-lite database and embedded with webserver engine with all access control functions in an intuitive GUI. User can login via internet browser to do all configuration.

It support 100,000 events and 100,000 user storage capacity.

TCP/RS485/Wiegand

The reader are tri interface output with TCPIP, RS485 and wiegand.

For TCPIP it is supported with AES256 bit encrypted protocol communications with controller and central server.

RS485 is adopting industry standard OSDP protocol and can plug-and-play to most OSDP controller.

For wiegand it support multi bit format output and suitable to most access controller.

Application

Both readers can configure as

1) Integrated Reader: to work with IO01/IO02 module for a single door operation;

2) Reader only: to work with Omnixk C2/C2i/C4 controller or any industry standard access controller;

3) Time Attendance Reader: to work as time-clock reader to provide user time-attendance event to HR system;

4) Card Check Reader: simply use to check the card serial nos.
